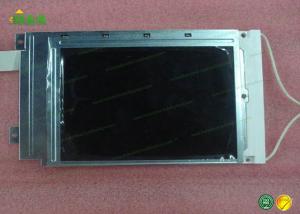

Normally Black/White 5.7 inch LM32019P lcd display module, Outline 166×109 mm Active Area 115.17×86.37 mm
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Here comes our other LCD panels stock for your easy reference:
| Panel Model |
Brand |
Size |
Resolution |
| LK315T3HC1K |
SHARP |
31.5" |
1366×768 |
| LQ055T3SX04 |
SHARP |
5.5" |
1080×1920 |
| LQ079L1SX06 |
SHARP |
7.9" |
1536×2048 |
| LQ079L1SX04 |
SHARP |
7.9" |
1536×2048 |
| LQ133M1JW08 |
SHARP |
13.3" |
1920×1080 |
| LQ156D1JX02 |
SHARP |
15.6" |
3840×2160 |
| LQ156Z1JW01 |
SHARP |
15.6" |
3200×1800 |
| LQ133T1JW14B |
SHARP |
13.3" |
2560×1440 |
| LQ047K3SX04 |
SHARP |
4.7" |
720×1280 |
| LS024Q8UC92 |
SHARP |
2.4" |
240×320 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
LM32019P Basic Information
| Panel Model |
LM32019P |
| Panel Brand |
SHARP |
| Descrition |
FSTN-LCD ,5.7 inch, 320×240 |
| Panel Type |
FSTN-LCD |
| Operating Temperature |
0 ~ 45 °C |
| Storage Temperature |
-25 ~ 60 °C |
LM32019P Mechanical Features
| Dot Resolution |
320×240 (QVGA) |
| Pixel Configuration |
Rectangle |
| Pixel Density |
70 PPI |
| Aspect Ratio |
4:3 (H:V) |
| Form Factor |
Flat Rectangle Display |
| Dot Pitch |
0.36×0.36 mm (H×V) |
| Pixel Pitch |
0.36×0.36 mm (H×V) |
| Weight |
160g (Typ.) |
| Active Area |
115.17×86.37 mm (H×V) |
| Bezel Area |
121.0×91.6 mm (H×V) |
| Outline Dimension |
166×109 mm (H×V) |
| Outline Depth |
7.5 (Max.) mm |
| Holes & Brackets |
Face mounting holes (3-Φ3.0, 1-Φ2.8) |
| Landscape or Portrait |
Landscape type |
| Touch Panel |
Without |
