3.5 inch LTP350QV-E06 Samsung LCD PanelNormally White with 53.64×71.52 mm

Brand Name : Samsung

Model Number : LTP350QV-E06

Certification : ISO9001

Place of Origin : korea

MOQ : 1

Payment Terms : Western Union, MoneyGram, T/T

Supply Ability : 500PCS/DAY

Delivery Time : 2-3 Working Days after order confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Brand : Samsung

Panel Model : LTP350QV-E06

Panel Type : a-Si TFT-LCD , LCM

Panel Size : 3.5 inch

Resolution : 240(RGB)×320 , QVGA

Display Mode : TN, Normally White, Transmissive

Contact Now

3.5 inch LTP350QV-E06 Samsung LCD PanelNormally White with 53.64×71.52 mm

Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.

LTP350QV-E06 Specification

Panel Brand : SAMSUNG
Panel Model : LTP350QV-E06
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 3.5 inch
Resolution : 240(RGB)×320 , QVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 53.64×71.52 mm
Outline : 64.3×87.1×4.85 mm
Surface : Hard coating (3H)
Brightness : 60 cd/m² (Typ.)
Contrast Ratio : 80:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 40 (Typ.)(Tr+Td)
Viewing Angle : 40/40/25/35 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type : WLED
Signal Interface : Parallel RGB (1 ch, 6-bit) , 60 pins
Input Voltage : 3.3/5.0V (Typ.)(DVDD/AVDD)

Panel Size : 3.5 inch
Dot Resolution : 240(RGB)×320 (QVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 113 PPI
Aspect Ratio : 3:4 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0745×0.2235 mm (H×V)
Pixel Pitch : 0.2235×0.2235 mm (H×V)
Weight : 47.0/52.0g (Typ./Max.
Surface : Hard coating (3H)
Active Area : 53.64×71.52 mm (H×V)
Outline Dimension : 64.3×87.1 mm (H×V)
Outline Depth : 4.25/4.85 (Typ./Max.) mm
Landscape or Portrait : Portrait type
Touch Panel : Embeded (4-wire Resistive)

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
AMS499QP07 Samsung 5.0" 1080×1920
AMS499QP01 Samsung 5.0" 1080×1920
AMS568AT01 Samsung 5.7" 1440×2560
AMS840CS04 Samsung 8.4" 1600×2560
AMS520BQ04-0 Samsung 5.2" 1080×1920
AMS309PW01-0 Samsung 3.1" 720×720
AMS465GS45 Samsung 4.7" 720×1280
AMS477GV07 Samsung 4.8" 720×1280
AMS429QC12 Samsung 4.3" 540×960
AMS465GS53 Samsung 4.7" 720×1280

Why do you choose us?

• Quick response to clients' enquiries within 24hrs.

• More than 6-year experience in LCD screen field and professional team communication team.

•Value quality and long-term cooperation to reach win-win relationship.

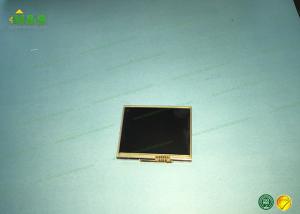

LTP350QV-E06 Picture

3.5 inch LTP350QV-E06 Samsung LCD PanelNormally White with 53.64×71.52 mm
