LB065WQ3-TD01 LG LCD Panel 6.5 inch LCM 400×240 450 400:1 262K CCFL TTL
Products Information:
| Panel Size : | 6.5 inch |
| Dot Resolution : | 400(RGB)×240 (WQVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 72 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1195×0.3305 mm (H×V) |
| Pixel Pitch : | 0.3585×0.3305 mm (H×V) |
| Weight : | 165/170g (Typ./Max.) |
| Surface : | Antiglare |
| Active Area : | 143.4×79.326 mm (H×V) |
| Bezel Area : | 146.6×82.0 mm (H×V) |
| Outline Dimension : | 155.3×91 mm (H×V) |
| Outline Depth : | 10.0±0.3 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 45% NTSC (CIE1931) |
| Response Time : | 10/30 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/50/65 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.40 (Typ./Max.)(5 points) |
| Sunlight Readable : | N |
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LH350H04-SH01 | LG Display | 3.5" | 320×480 |
| LH156J01-TH01 | LG Display | 1.6" | 160×96 |
| LC470EUJ-FFK1 | LG Display | 47" | 1920×1080 |
| LC500DUJ-FFE1 | LG Display | 50" | 1920×1080 |
| LM215WF4-TJC1 | LG Display | 21.5" | 1920×1080 |
| LM230WF3-SJD1 | LG Display | 23.0" | 1920×1080 |
| LM230WF5-TJL3 | LG Display | 23.0" | 1920×1080 |
| LM185WH2-TJBC | LG Display | 18.5" | 1366×768 |
| LC550DUJ-SEE1 | LG Display | 55" | 1920×1080 |
| LC470EUJ-SFK2 | LG Display | 47" | 1920×1080 |
| LC370EXJ-FEE1 | LG Display | 36.5" | 1366×768 |

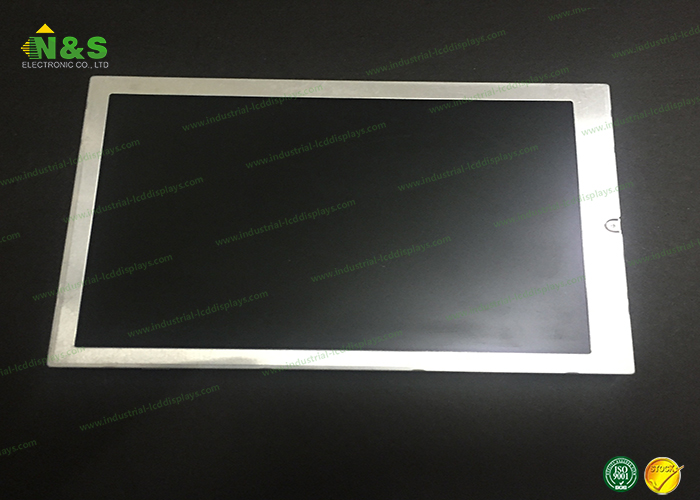

LB065WQ3-TD01 Picture
Product Tags:
|
|
LB065WQ3-TD01 LG LCD Panel 6.5 inch LCM 400×240 450 400:1 262K CCFL TTL Images
|
