3.0 Inch 250 cd / m² LS030B8PX01H Sharp LCD Panel with 39.24×65.4 mm Active Area

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

3.0 Inch 250 cd / m² LS030B8PX01H Sharp LCD Panel with 39.24×65.4 mm Active Area

Brand Name : SHARP

Model Number : LS030B8PX01H

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1

Payment Terms : Western Union, T/T, MoneyGram, T/T

Supply Ability : 500PCS/DAY

Delivery Time : 1-3WORK DAY

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Resolution : 240(RGB)×400 , WQVGA

Panel Size : 3.0 inch

Panel Type : CG-Silicon , LCM

Active Area : 39.24×65.4 mm

Outline : 44.56×75.36 mm

Brightness : 250 cd/m² (Typ.)

Contrast Ratio : 300:1 (Typ.)(Transmissive) 12:1 (Typ.)(Reflective)

Display Colors : 4096 (4-bit) , CIE1931 72%

Contact Now

3.0 inch LS030B8PX01H Sharp LCD Panel with 39.24×65.4 mm Active Area

LS030B8PX01H Specification

Panel Size : 3.0 inch
Dot Resolution : 240(RGB)×400 (WQVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 155 PPI
Aspect Ratio : 3:5 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0545×0.1635 mm (H×V)
Pixel Pitch : 0.1635×0.1635 mm (H×V)
Weight :
9.0g (Typ.)
Active Area : 39.24×65.4 mm (H×V)
Outline Dimension :
44.56×75.36 mm (H×V)
Outline Depth : 2.0 (Typ.) mm
Touch Panel : Without
Display Mode : TN, Normally White, Transflective
Brightness : 250 cd/m² (Typ.)
Contrast Ratio :
300 : 1 (Typ.) (Transmissive)
Contrast Ratio : 12:1 (Typ.) (Reflective)
Display Color : 4096 (4-bit)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 60/30 (Typ.)(Tr/Td)
Viewing Angle : 80/80/80/80 (Typ.)(CR≥3) (L/R/U/D)
Reflectance Ratio : 0.9/1.5% (Min./Typ.)
Sunlight Readable : Y

Our Company Strength in LCD Screen Sourcing:

  1. ISO9001 certificated, Factory Direct Supplied
  2. Competitive Price and Short Lead-time
  3. Professional Team with Rich Experiences in LCD screen international trade communication.
  4. Small MOQ Support & Fast Response to Customers
  5. Long Product Life Time
  6. 1 Year warranty for our LCD screen replacements.

Packaging & Delivery

Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.

Delivery Detail: 2-3 days after receipt of payment

Payment terms: We accept T/T, PayPal, Western Union and others.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LK315T3HC1K SHARP 31.5" 1366×768
LQ055T3SX04 SHARP 5.5" 1080×1920
LQ079L1SX06 SHARP 7.9" 1536×2048
LQ079L1SX04 SHARP 7.9" 1536×2048
LQ133M1JW08 SHARP 13.3" 1920×1080
LQ156D1JX02 SHARP 15.6" 3840×2160
LQ156Z1JW01 SHARP 15.6" 3200×1800

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

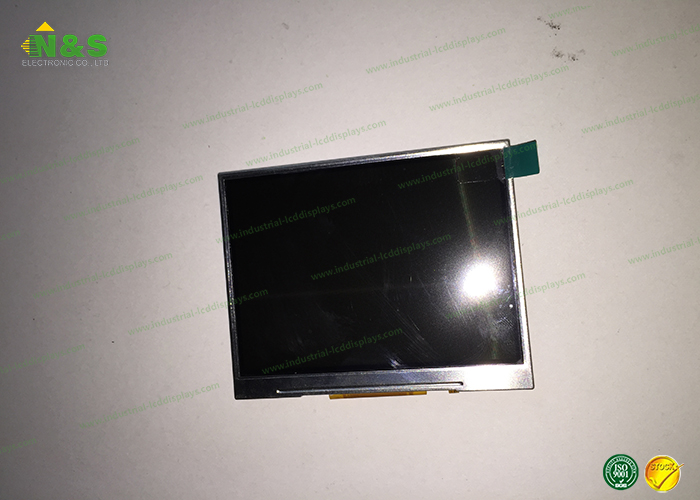

LS030B8PX01H Picture

3.0 Inch 250 cd / m² LS030B8PX01H Sharp LCD Panel with 39.24×65.4 mm Active Area
