10.6 Inch Normally White Samsung LCD Panel LTN106W1-L01 with 230.4×138.24 mm

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

10.6 Inch Normally White Samsung LCD Panel LTN106W1-L01 with 230.4×138.24 mm

Brand Name : Samsung

Model Number : LTN106W1-L01

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1 Piece

Payment Terms : T/T, Paypal, Western Union, MoneyGram

Supply Ability : 100 PCS / DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Contrast Ratio : 250:1 (Typ.)

Panel Size : 10.6 inch

Resolution : 1280(RGB)×768 , WXGA

Display Mode : TN, Normally White, Transmissive

Frequency : 60Hz

Signal Interface : LVDS (2 ch, 6-bit) , 30 pins

Contact Now

10.6 inch Normally White LTN106W1-L01 Samsung with 230.4×138.24 mm

Our Advantage

As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:

  1. AUO LCD Screen
  2. Samsung LCD Display
  3. LG LCD Screen replacements
  4. Sharp LCD panels &Chimei LCD Parts.
  5. Innolux LCD Modules & BOE LCD Screen.
Products Information:
Panel Size : 10.6 inch
Dot Resolution : 1280(RGB)×768 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 141 PPI
Aspect Ratio : 15:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.060×0.180 mm (H×V)
Pixel Pitch : 0.180×0.180 mm (H×V)
Weight : 260g (Typ.)
Surface : Antiglare (Haze 25%), Hard coating (3H)
Active Area : 230.4×138.24 mm (H×V)
Bezel Area : 234.4×142.25 mm (H×V)
Outline Dimension : 243.4×152 mm (H×V)
Outline Depth : 5.7±0.3 mm
Landscape or Portrait : Landscape type
Touch Panel : Without

Display Mode : TN, Normally White, Transmissive
Brightness : 185 cd/m² (Typ.)
Contrast Ratio : 250 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 10/30 (Typ.)(Tr/Td)
Viewing Angle : 45/45/15/30 (Min.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
Sunlight Readable : N

Packaging & Delivery

· Delivery Lead Time :2~3 weeks

· Minimum Order :1 pcs LCD Panel

· Supply Ability :100 PCS / Per Day

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
AMS549HQ02 Samsung 5.5" 720×1280
AMS520BQ12-0 Samsung 5.2" 1080×1920
AMS497DX12-0 Samsung 5.0" 720×1280
AMS163AN01 Samsung 1.63" 320×320
AMS510CV02 Samsung 5.1" 1080×1920
AMS510CV01 Samsung 5.1" 1080×1920

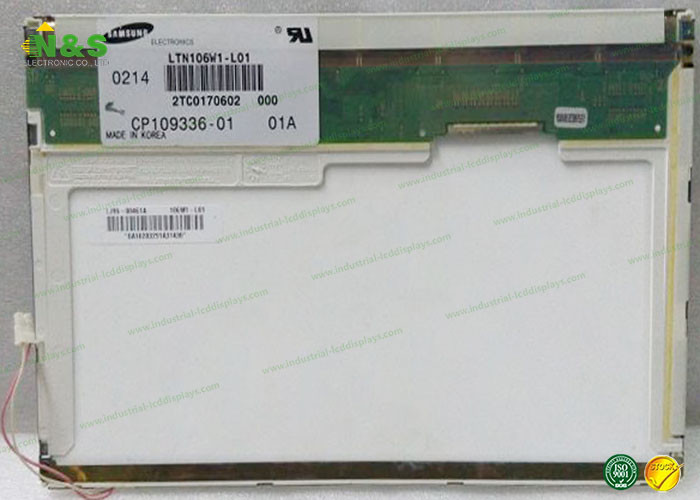

LTN106W1-L01 Picture

10.6 Inch Normally White Samsung LCD Panel LTN106W1-L01 with 230.4×138.24 mm
