LP097X02-SLQ2 LG LCD Panel 9.7 inch with 196.608×147.456 mm for All Pad,Tablet panel

Product Categories

N&S ELECTRONIC CO., LIMITED

Contact Now

Brand Name : LG

Model Number : LP097X02-SLQ2

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1

Payment Terms : Western Union, T/T, MoneyGram, T/T

Supply Ability : 500PCS/DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Type : a-Si TFT-LCD , LCM

Panel Size : 9.7 inch

Resolution : 1024(RGB)×768 , XGA

Display Mode : S-IPS, Normally Black, Transmissive

Active Area : 196.608×147.456 mm

Outline : 210.2×166.2 mm

Contact Now

LP097X02-SLQ2 LG LCD Panel 9.7 inch with 196.608×147.456 mm for All Pad,Tablet panel

LP097X02-SLQ2 LG LCD Panel Detail

Panel Size :	9.7 inch
Dot Resolution :	1024(RGB)×768 (XGA)
Pixel Configuration :	RGB Vertical Stripe
Pixel Density :	132 PPI
Aspect Ratio :	4:3 (H:V)
Form Factor :	Flat Rectangle Display
Dot Pitch :	0.064×0.192 mm (H×V)
Pixel Pitch :	0.192×0.192 mm (H×V)
Weight :	TBD
Surface :	Glare (Haze 0%), Hard coating (3H), Antireflection
Active Area :	196.608×147.456 mm (H×V)
Outline Dimension :	210.2×166.2 mm (H×V)
Outline Depth :	5.75 (Max.) mm
Landscape or Portrait :	Landscape type
Touch Panel :	Without

Packing & Delivery for our LCD Screen Panel Replacements:

Display Mode :	S-IPS, Normally Black, Transmissive
Brightness :	400 cd/m² (Typ.)
Contrast Ratio :	600 : 1 (Typ.) (Transmissive)
Display Color :	262K (6-bit)
Response Time :	30 (Typ.)(Tr+Td)
Viewing Angle :	80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	Symmetry
White color Chromaticity :	Wx:0.313; Wy:0.329
White Variation :	1.43/1.67 (Typ./Max.)(143 points)
Sunlight Readable :	N

Our Service

1. Small quantity also can be provided.

2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise

5. Sourcing line for different hard disks for different brands.

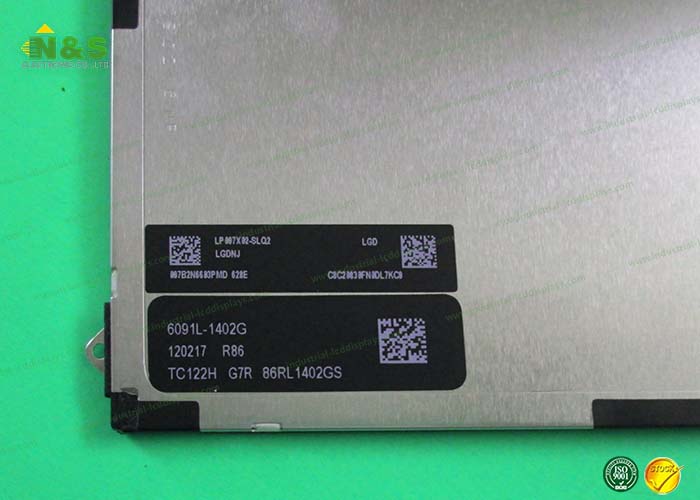

LP097X02-SLQ2 LG LCD Panel Picture

LP097X02-SLQ2 LG LCD Panel 9.7 inch with 196.608×147.456 mm for All Pad,Tablet panel
