1024*768 AUO LCD Panel , G150XVN01.1 15 lcd display module for Industrial Applications

N&S ELECTRONIC CO., LIMITED
Contact Now

1024*768 AUO LCD Panel , G150XVN01.1 15 lcd display module for Industrial Applications

Brand Name : AUO LCD Panel

Model Number : G150XVN01.1

Certification : ISO9001

Place of Origin : Japan,Korea,Taiwan

MOQ : 1 Piece

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 100 PCS PER DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box

Display Colors : 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 72%

Response Time : 20/15 (Typ.)(Tr/Td)

Signal Interface : LVDS (1 ch, 6/8-bit) , 30 pins

Brightness : 300 cd/m² (Typ.)

Contrast Ratio : 1500:1 (Typ.)

Surface : Antiglare, Hard coating (3H)

Backlight : WLED

Outline : 326.50× 253.50×9.60 mm

Contact Now

1024*768 AUO LCD Panel , G150XVN01.1 15 lcd display module for Industrial Applications

Product Common Parameters

Model G150XVN01.1
Size 15.0"
Productor AUO
Resolution 1024×768
Display scale 4:3 (H:V)
Response 35 ms
Luminance 300 nits
Contrast Ratio 1500:1
Color 262K/16.2M
Technology a-Si TFT-LCD
Interface LVDS
Drive-screen voltage 3.3V
Backlight WLED
Active Area 304.128×228.096 mm
Outline 326.50× 253.50×9.60 mm
Weight 910g (Typ.)
Viewing Angle 85/85/85/85(U/D/L/R)

Product Specification

Pixel Configuration : RGB Vertical Stripe
Pixel Density : 85 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.099×0.297 mm (H×V)
Pixel Pitch : 0.297×0.297 mm (H×V)
Surface : Antiglare, Hard coating (3H)
Bezel Area : 307.2×231.1 mm (H×V)
Outline Dimension : 326.5×253.5 mm (H×V)
Outline Depth : 9.6 (Typ.) mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Display Mode : MVA, Normally Black, Transmissive
Color Gamut : 72% NTSC (CIE1931)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.300; Wy:0.325
White Variation : 1.33 (Max.)(5 points)
Vertical Frequency : 60Hz
Reverse Scan : Yes (180°)
Total Power Consumption : 10.1W (Typ.)

Warranty:

1. All panels’ grade is promised strictly same as original factory’s standard.

2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.

3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.

4. ISO 9001 guarantee.

Competitive Advantage:

1. We are a leading vendor & distributor for the LCD panels for more than 6 years.

2. We got the ISO9001 quality management system certification.

3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.

4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.

5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.

6. 1-year warranty is offered.

7. All LCD Panel will be tested before shipment.

8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.

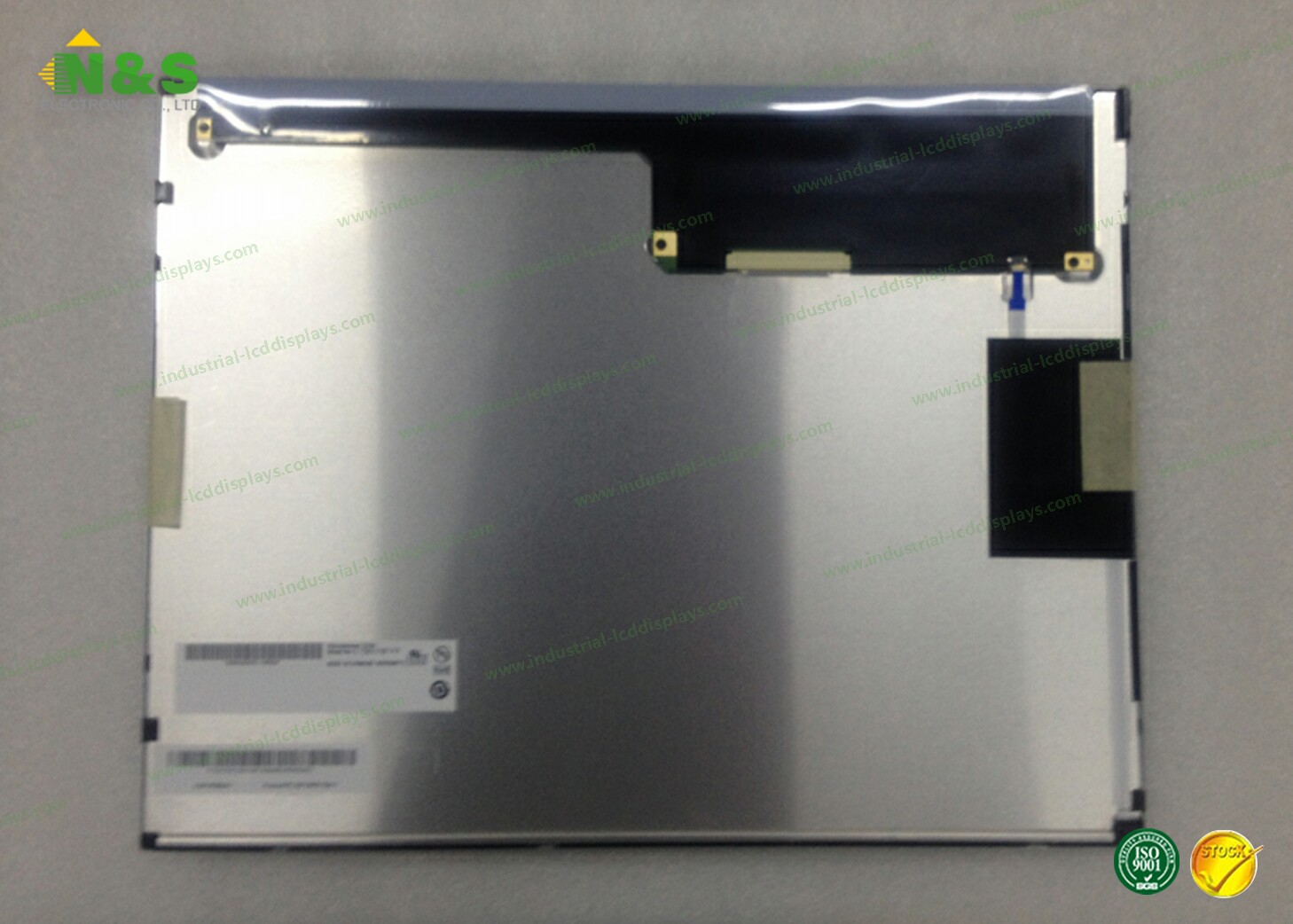

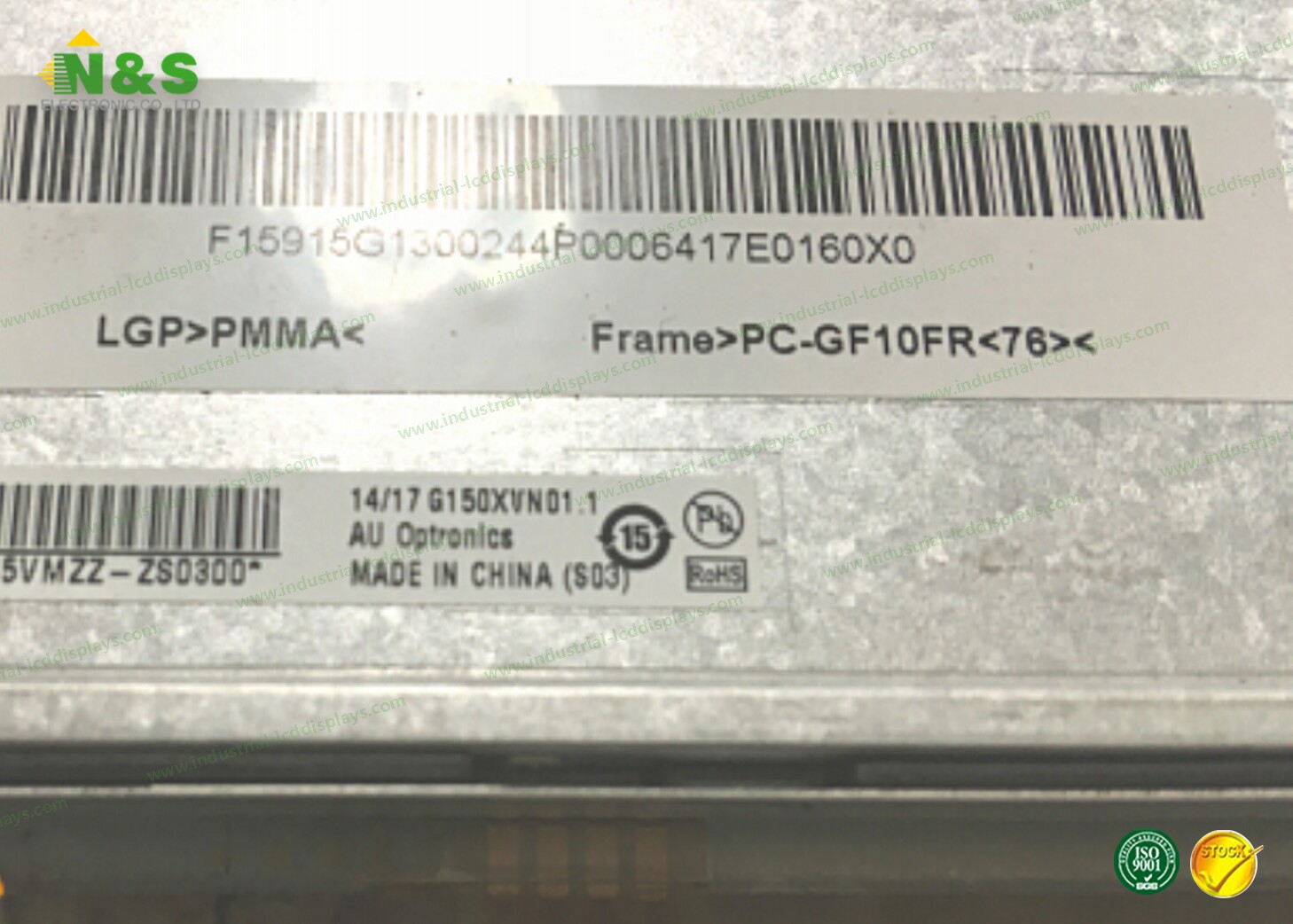

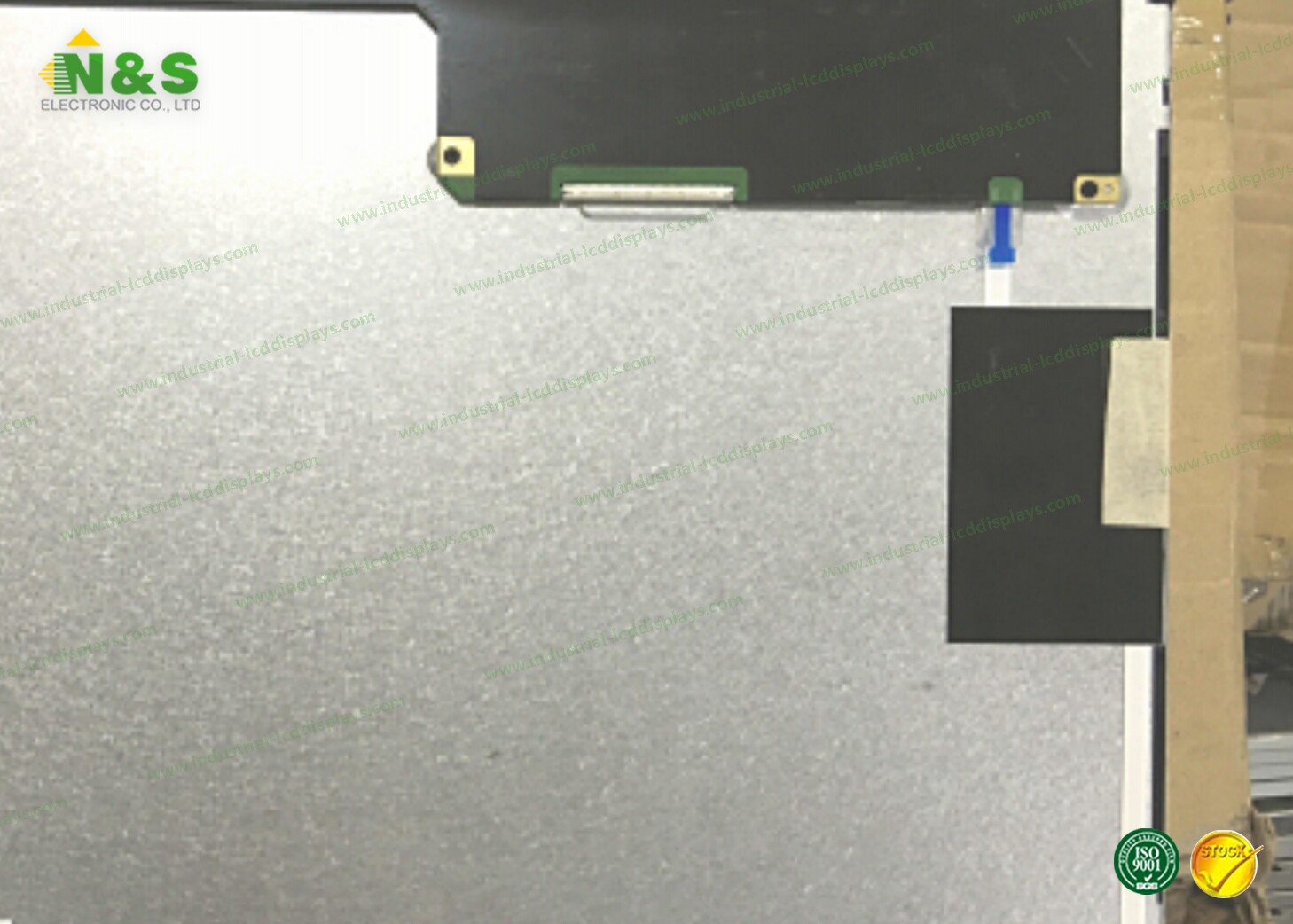

Details Picture for AUO G150XVN01.1

1024*768 AUO LCD Panel , G150XVN01.1 15 lcd display module for Industrial Applications

1024*768 AUO LCD Panel , G150XVN01.1 15 lcd display module for Industrial Applications

1024*768 AUO LCD Panel , G150XVN01.1 15 lcd display module for Industrial Applications
