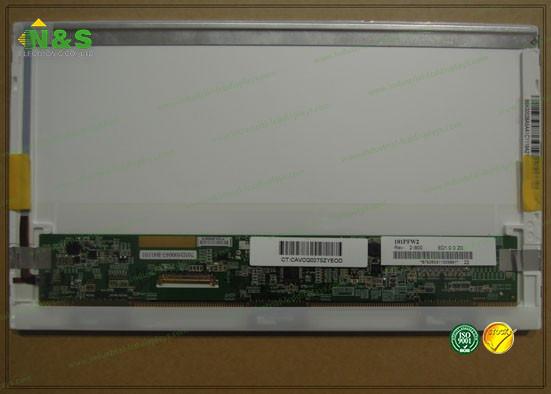

HannStar HSD101PFW2-C00 10.1 inch 222.72×125.28 mm Active Area 235×143×5.3 mm Outline
HannStar HSD101PFW2-C00 General Features
| Panel Brand : |
HannStar |
| Panel Model : |
HSD101PFW2-C00 |
| Panel Type : |
a-Si TFT-LCD , Panel |
| Panel Size : |
10.1 inch |
| Resolution : |
1024(RGB)×600 , WSVGA |
| Display Mode : |
TN, Normally White, Transmissive |
| Active Area : |
222.72×125.28 mm |
| Outline : |
235×143×5.3 mm |
| Surface : |
Antiglare, Hard coating (3H) |
| Brightness : |
300 cd/m² (Typ.) |
| Contrast Ratio : |
500:1 (Typ.) |
| Display Colors : |
262K (6-bit) |
| Response Time : |
16 (Typ.)(Tr+Td) |
| Viewing Angle : |
70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : |
60Hz |
| Lamp Type : |
WLED |
| Signal Interface : |
LVDS (1 ch, 6-bit) , 30 pins |
| Input Voltage : |
3.3V (Typ.) |
HannStar HSD101PFW2-C00 Mechanical Features
| Panel Size : |
10.1 inch |
| Dot Resolution : |
1024(RGB)×600 (WSVGA) |
| Pixel Configuration : |
RGB Vertical Stripe |
| Pixel Density : |
117 PPI |
| Aspect Ratio : |
16:9 (H:V) |
| Form Factor : |
Flat Rectangle Display |
| Dot Pitch : |
0.0725×0.2088 mm (H×V) |
| Pixel Pitch : |
0.2175×0.2088 mm (H×V) |
| Weight : |
185.0g (Typ.) |
| Surface : |
Antiglare, Hard coating (3H) |
| Active Area : |
222.72×125.28 mm (H×V) |
| Bezel Area : |
225.72×128.28 mm (H×V) |
| Outline Dimension : |
235×143 mm (H×V) |
| Outline Depth : |
5.0/5.3 (Typ./Max.) mm |
| Holes & Brackets : |
Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait : |
Landscape type |
| Touch Panel : |
Without |
