A070VW01 V0 TFT LCD Module 262K Display Colors 1 pcs CCFL Lamp Type

Name: A070VW01 V0 TFT LCD Module 262K Display Colors 1 pcs CCFL Lamp Type
Brand: AUO LCD Panel
Price: 1 USD

Quality A070VW01 V0 TFT LCD Module 262K Display Colors 1 pcs CCFL Lamp Type wholesale

Brand Name : AUO LCD Panel

Model Number : A070VW01 V0

Certification : ISO9001

Place of Origin : Japan，Korea

MOQ : 1

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 500PCS/DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Size : 7.0 inch

Panel Type : a-Si TFT-LCD , Panel

Panel Model : a-Si TFT-LCD , Panel

Panel Brand : 7.0 inch12/18 (Typ.)(Tr/Td)

Response Time : 800(RGB)×480 , WVGA

Display Colors : 262K (6-bit)

Contrast Ratio : 300:1 (Typ.)

Brightness : 400 cd/m² (Typ.)

Contact Now

A070VW01 V0 TFT LCD Module 262K Display Colors 1 pcs CCFL Lamp Type

Packing & Delivery for our LCD Screen Panel Replacements

1. Anti-static Bag Packing.

2. Anti-Shock Bubble Bag Packing

3. Foam and Hard Carton Packing

4. icked up by forward and delivered by express services.

Company Strength

1. ISO9001 certificated, Factory Direct Supplied

2. RoHS Compliant, Lead Free, Reach Compliant

3. Competitive Price and Short Lead-time

4. Professional Team with Rich Experiences in Design/Mfg/Quality Control

5. Small MOQ Support & Fast Response to Customers

6. Long Product Life Time

AUO A070VW01 V0 General Features

Panel Brand :	AUO
Panel Model :	A070VW01 V0
Panel Type :	a-Si TFT-LCD , Panel
Panel Size :	7.0 inch
Resolution :	800(RGB)×480 , WVGA
Display Mode :	TN, Normally White, Transmissive
Active Area :	152.4×91.44 mm
Outline :	165×104×6.3 mm
Surface :	Antiglare
Brightness :	400 cd/m² (Typ.)
Contrast Ratio :	300:1 (Typ.)
Display Colors :	262K (6-bit)
Response Time :	12/18 (Typ.)(Tr/Td)
Viewing Angle :	60/60/40/60 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type :	1 pcs CCFL Without Driver
Signal Interface :	TTL (1 ch, 6-bit) , 50 pins
Input Voltage :	3.3/8.8/15/-10V (Typ.)(VCC/AVDD/VGH/VGL)

AUO A070VW01 V0 Optical Features

Display Mode :	TN, Normally White, Transmissive
Brightness :	400 cd/m² (Typ.)
Contrast Ratio :	300 : 1 (Typ.) (Transmissive)
Display Color :	262K (6-bit)
Response Time :	12/18 (Typ.)(Tr/Td)
Viewing Angle :	60/60/40/60 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	6 o'clock
White color Chromaticity :	Wx:0.310; Wy:0.330

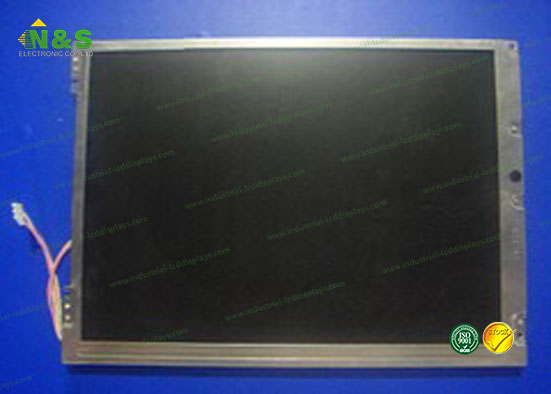

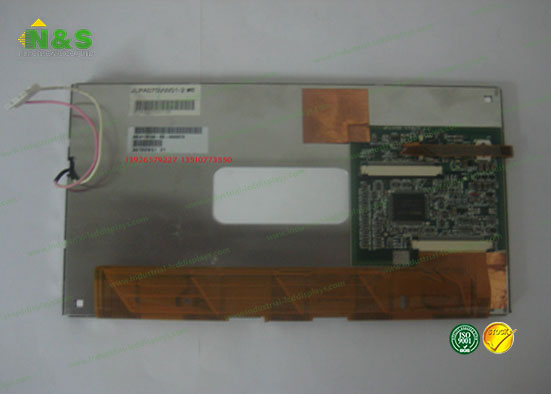

Details Pictures for AUO LCD Panel A070VW01 V0

A070VW01 V0 TFT LCD Module 262K Display Colors 1 pcs CCFL Lamp Type
