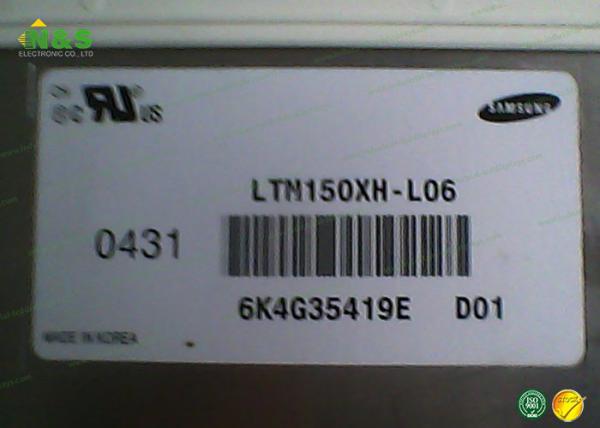

15.0 Inch LTM150XH - L06 Samsung LCD Panel 1024*768 without touch
TFT LCD Module series:
1. Our standard TFT LCD module size:
1.5", 2.0", 2.2", 2.5", 3.0", 3.5", 4.0", 4.2", 4.3", 4.7", 5.0", 5.5", 5.7", 6.0", 6.4", 7.0", 8.0", 10.1", 10.4", 12.1", etc.
2. Our TFT LCD module brands:
NEC, SHARP, AUO, SAMSUNG, LG, TIANMA, HITACHI, KOE etc.
3. Transflective / sun readable TFT LCD.
4. We are pretty specialize in the EOL & Hard-to-find LCD screen panel.
Here comes our other LCD panels stock for your easy reference:
| Panel Model |
Brand |
Size |
Resolution |
| AMS353FD09-0 |
Samsung |
3.5" |
480×800 |
| AMS369FG06-0 |
Samsung |
3.7" |
480×800 |
| LSC550FN19-W |
Samsung |
55" |
3840×2160 |
| LSC550FJ13-W |
Samsung |
55" |
3840×2160 |
| LSC490FJ02-W |
Samsung |
49" |
3840×2160 |
| LSC490FN04-W |
Samsung |
49" |
3840×2160 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Mechanical Features
| Panel Size : |
15.0 inch |
| Dot Resolution : |
1024(RGB)×768 (XGA) |
| Pixel Configuration : |
RGB Vertical Stripe |
| Pixel Density : |
85 PPI |
| Aspect Ratio : |
4:3 (H:V) |
| Form Factor : |
Flat Rectangle Display |
| Dot Pitch : |
0.099×0.297 mm (H×V) |
| Pixel Pitch : |
0.297×0.297 mm (H×V) |
| Weight : |
1.35Kgs (Max.) |
| Surface : |
Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : |
304.1×228.1 mm (H×V) |
| Bezel Area : |
307.2×231.1 mm (H×V) |
| Outline Dimension : |
331.6×254.8 mm (H×V) |
| Outline Depth : |
12.5±0.5 mm |
| Holes & Brackets : |
Face mounting holes (2-Φ3.2, 2-R2) on left, right bezel |
| Landscape or Portrait : |
Landscape type |
| Touch Panel : |
Without |
Optical Features
Display Mode : TN, Normally White, Transmissive
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 400 : 1 (Typ.) (Transmissive)
Display Color : 16.2M (6-bit + FRC)
Response Time : 5/20 (Typ.)(Tr/Td)
Viewing Angle : 70/70/60/65 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.280; Wy:0.290
White Variation : 1.33 (Max.)(9 points)
General Features
| Panel Brand : |
SAMSUNG |
| Panel Model : |
LTM150XH-L06 |
| Panel Type : |
a-Si TFT-LCD , Panel |
| Panel Size : |
15.0 inch |
| Resolution : |
1024(RGB)×768 , XGA |
| Display Mode : |
TN, Normally White, Transmissive |
| Active Area : |
304.1×228.1 mm |
| Outline : |
331.6×254.8×13 mm |
| Surface : |
Antiglare (Haze 25%), Hard coating (3H) |
| Brightness : |
400 cd/m² (Typ.) |
| Contrast Ratio : |
400:1 (Typ.) |
| Display Colors : |
16.2M (6-bit + FRC) |
| Response Time : |
5/20 (Typ.)(Tr/Td) |
| Viewing Angle : |
70/70/60/65 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : |
60Hz |
| Lamp Type : |
4 pcs CCFL Without Driver |
| Signal Interface : |
LVDS (1 ch, 8-bit) , 20 pins |
| Input Voltage : |
3.3V (Typ.) |
Questions & Answers:
Q1: How can you trust us?
- We are a professional team for the LCD panel international trade already for 6 years. We own the more professional & more competitive sourcing line & agency for the LCD Screen panels.
Q2: When can I get the update price?
- Within 24 hours after we get your inquiry.
Q3: What is your product capacity per day?
- 500-1000 pcs/day. We test each pcs LCD panels before shipment.
Q4: What is the payment term?
- T/T, Western Union, MoneyGram, PayPal.
Features:
· High brightness LCD, resistive touch screen is optional.
· The brightness and contrast can be adjusted manually or automatically, having a power saving mode.
· High-strength aluminum alloy panel, surface oxidation treatment after drawing.
· The overall protection grade IP64, front panel IP65. Dust proof and shockproof.
