Brand Name : Innolux LCD Panel
Model Number : G104S1-L01
Certification : ISO9001
Place of Origin : China
MOQ : 1
Price : USD
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,HKIN ESCROW .....
Supply Ability : 500PCS/DAY
Delivery Time : 1-2days
Packaging Details : Standard packing
Aspect Ratio : 4:3 (H:V)
Frequency : 60Hz
Panel Size : 10.4 inch
Pixel Density : 96 PPI
Pixel Pitch : 0.264×0.264 mm (H×V)
Outline Depth : 7.0/7.3 (Typ./Max.) mm
Sunlight Readable 10.4" Character Lcd Module G104S1-L01 Transmissive Embedded LED Driver
Our company’s advantages for TFT LCD Screen Display Area:
N&S Technology Limited founded in May of 2010, is a professional panel display supplier and solution maker in China. We provides a wide range of value adding products as well as a professional engineering team providing customization and support services.
N&S Technology Limited is an experienced solution provider for mid & small sized (3.5---15) LCD module(PVI/AUO/CMI/INNLOUX/IVO) ,Our products include A/D & D/D TFT-LCD controller board, Industrial TFT- LCD, CCFL/LED Backlight inverter, industrial monitor, open frame etc.
Several years were promoted in the TFT-LCD market, we build good relationships with supplier of AUO,CMO,IVO and INNLOUX ,so that we can get good price and delivery date.
we offer high quality, fast delivery, competitive price for our customers;
> Please send your RFQ(request for quoting) to get latest price;
> We will ship the items within 2 working days after receive the payment;
> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways;
> We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices ;
Basic Information:
<
Panel Brand : | CHIMEI INNOLUX |
Panel Model : | G104S1-L01 |
Panel Type : | a-Si TFT-LCD , Panel |
Panel Size : | 10.4 inch |
Resolution : | 800(RGB)×600 , SVGA |
Display Mode : | TN, Normally White, Transmissive |
Active Area : | 211.2×158.4 mm |
Outline : | 243×184×7.3 mm |
Surface : | Antiglare, Hard coating (3H) |
Brightness : | 400 cd/m² (Typ.) |
Contrast Ratio : | 700:1 (Typ.) |
Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 53% |
Response Time : | 5.0/11.0 (Typ.)(Tr/Td) |
Viewing Angle : | 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) |
Frequency : | 60Hz |
Lamp Type : | WLED Embedded (LED Driver) |
Signal Interface : | LVDS (1 ch, 6/8-bit) , 20 pins |
Input Voltage : | 3.3V (Typ.) |
CHIMEI INNOLUX G104S1-L01 Backlight System :
1. Lamp Position : Edge light type
2. Lamp Type : WLED
3. Lamp Life Time : 30K(Min.) (Hours)
4. Lamp Replaceable : Replaceable
5. Interface Type : Connector
6. Backlight Interface Brand Model Pin Pitch Pins Amount Configuration
E&T 3823K-F05N-00L 1.25 mm 5 pins 1 pcs
7. Lamp Driver Board : Embedded (LED Driver)
8. Lamp Driver Board : 12.0±5.0V
9. Lamp Driver Board : 0.25/0.3A (Typ./Max.)
10. Lamp Driver Board : 3.0/3.6W (Typ./Max.)

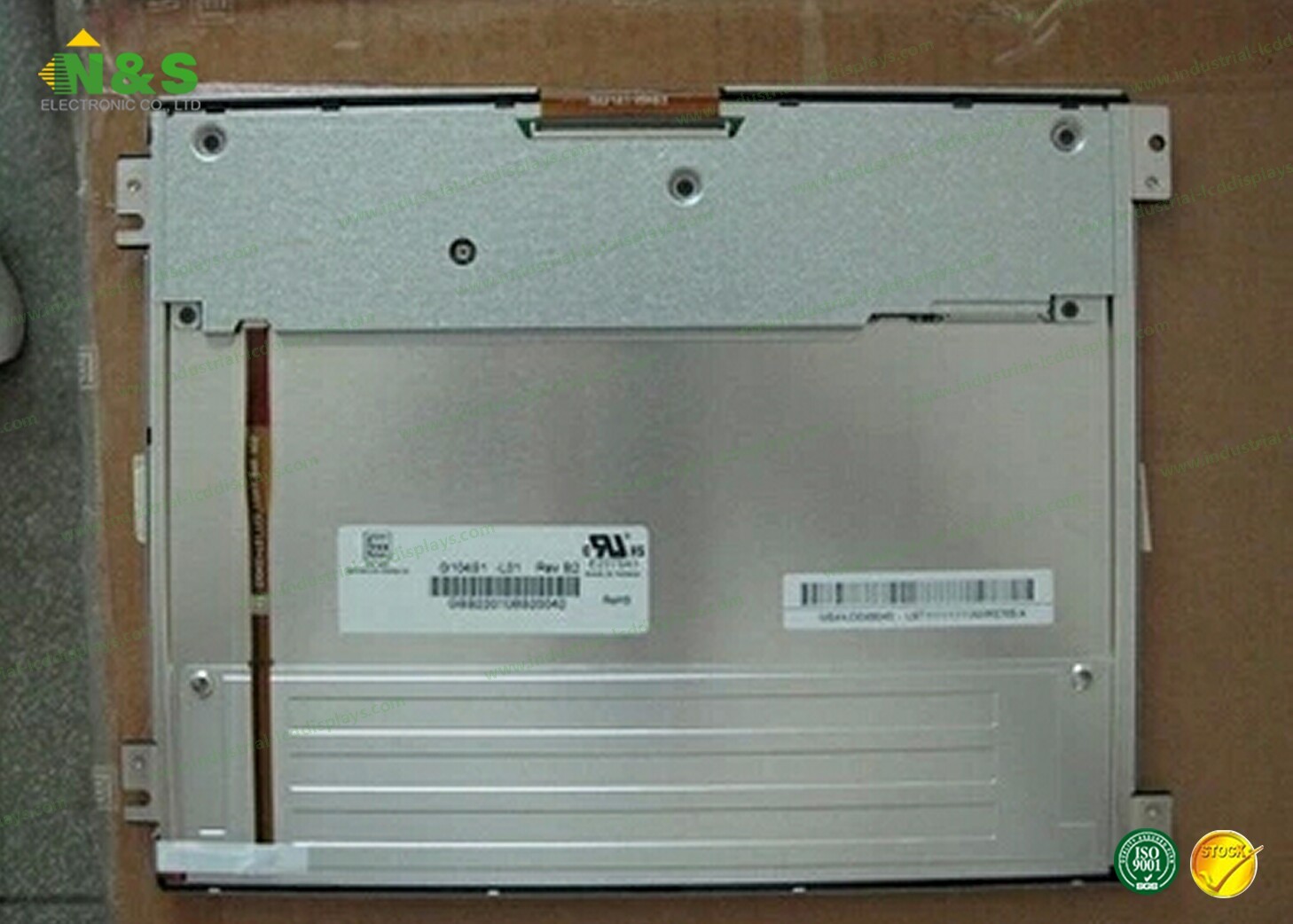

Picture for INNOLUX G104S1-L01:
![]() |
Sunlight Readable 10.4" Character Lcd Module G104S1-L01 Transmissive Embedded LED Driver Images |
