98 PPI 15.4 Inch Innolux LCD Panel G154I1-L01 Aluminum Front Bezel For Portable DVD

N&S ELECTRONIC CO., LIMITED
Contact Now

98 PPI 15.4 Inch Innolux LCD Panel G154I1-L01 Aluminum Front Bezel For Portable DVD

Brand Name : Innolux LCD Panel

Model Number : G154I1-L01

Certification : ISO9001

Place of Origin : China

MOQ : 1

Price : USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,HKIN ESCROW .....

Supply Ability : 500PCS/DAY

Delivery Time : 1-2days

Packaging Details : Standard packing

Aspect Ratio : 4:3 (H:V)

Frequency : 60Hz

Panel Size : 10.4 inch

Pixel Density : 96 PPI

Weight : 360g (Typ.)

Landscape or Portrait : Landscape type

Contact Now

15.4" and Antiglare 98 PPI G154I1-L01 of monochrome lcd monitor Innolux LCD Panel

Product Description:

<

Panel Brand : CMO
Panel Model : G154I1-L01
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 15.4 inch
Resolution : 1280(RGB)×800 , WXGA
Display Mode : TN, Normally White, Transmissive
Active Area : 331.2×207 mm
Outline : 352×230×16.3 mm
Surface : Glare (Haze 0%), Hard coating (3H), Antireflection
Brightness : 700 cd/m² (Typ.)
Contrast Ratio : 700:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 5/11 (Typ.)(Tr/Td)
Viewing Angle : 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 4 pcs CCFL Without Driver
Signal Interface : LVDS (1 ch, 6-bit) , 20 pins
Input Voltage : 3.3V (Typ.)

Features and Advantages :


1. New and Industrial A grade perfect panels with stable supply
2. industrial control board supports the displays working 24 hours
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment, Aluminum Front Bezel with rugged housing
4. Industrial design to protect the LCD screen, mounting on the outdoor application
5. VGA DVI interfaces

CMO G154I1-L01 Features :

> Fast delivery
> Original

> Best price
> Good quality
> Excellent service
> we offer high quality, fast delivery, competitive price for our customers;
> Please send your RFQ(request for quoting) to get latest price;
> We will ship the items within 2 working days after receive the payment;
> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways;
> We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices;
> Warranty of each part.

About Shipping:

we will test them strictly before shipping.

we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.

Backlight System:

Lamp Position : Edge light type (Top and Bottom)
Lamp Type : CCFL
Lamp Amount : 4 pcs
Lamp Shape : Straight
Lamp Life Time : 50K(Min.) (Hours)
Lamp Replaceable : Replaceable
Lamp Voltage : 600±60V
Lamp Current : 3.0/7.0/8.0mA (Min./Typ./Max.)
Lamp Operating Frequency : 40/55/80KHz (Min./Typ./Max.)
Lamps Power Consumption : 16.8W (Typ.)
Interface Type : Connector

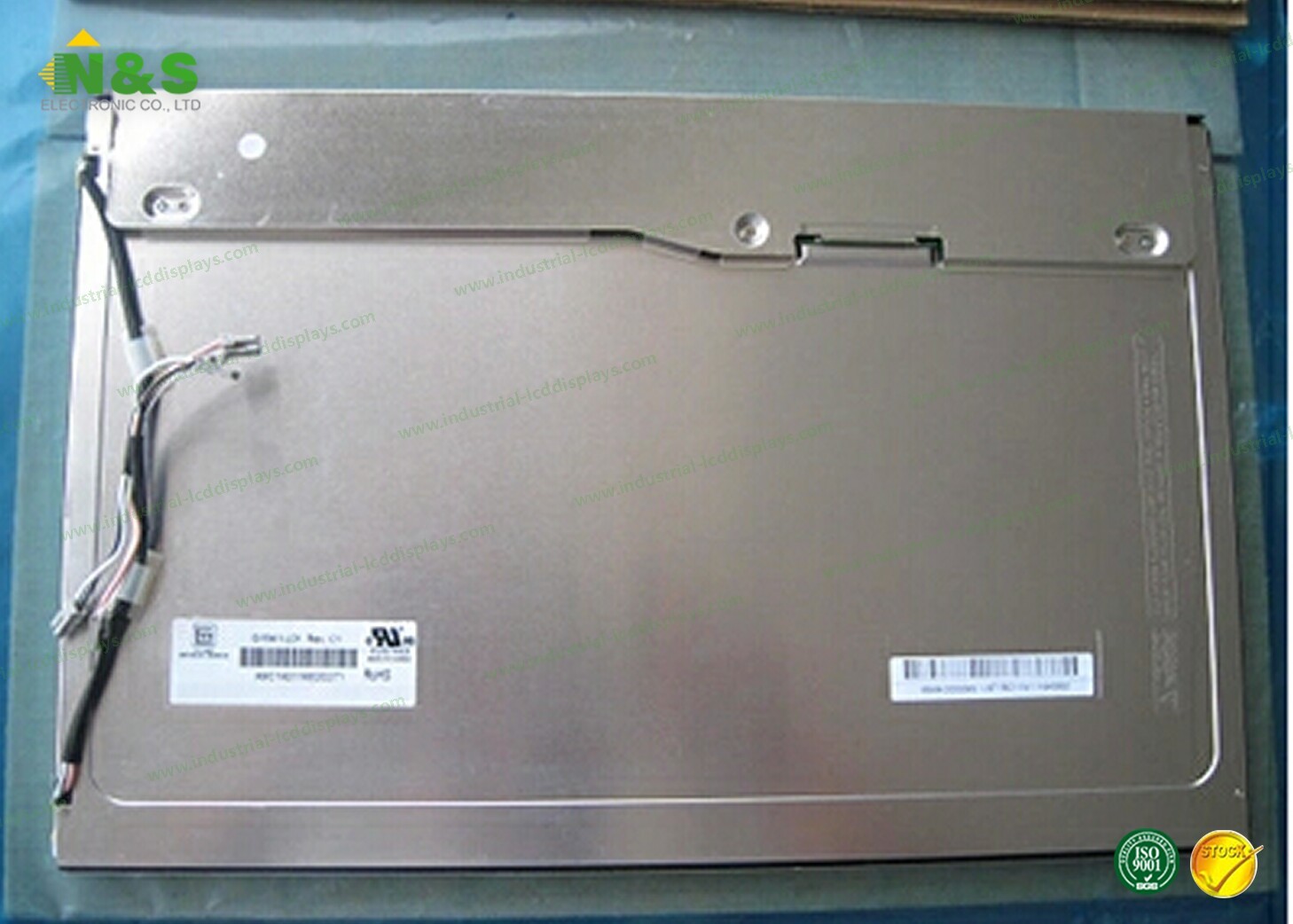

Picture for G154I1-L01:

98 PPI 15.4 Inch Innolux LCD Panel G154I1-L01 Aluminum Front Bezel For Portable DVD


Product Tags:

lcd display panel



innolux lcd screen


Quality 98 PPI 15.4 Inch Innolux LCD Panel G154I1-L01 Aluminum Front Bezel For Portable DVD wholesale

98 PPI 15.4 Inch Innolux LCD Panel G154I1-L01 Aluminum Front Bezel For Portable DVD Images
