Wide Temperature 8.0 Inch Color Lcd Module , Embeded AUO Touch Panel A080SN03 V3 For Car

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

Wide Temperature 8.0 Inch Color Lcd Module , Embeded AUO Touch Panel A080SN03 V3 For Car

  • 1
  • 2

Brand Name : AUO

Model Number : A080SN03 V2

Certification : ISO9001

Place of Origin : China

MOQ : 1

Price : USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,HKIN ESCROW .....

Supply Ability : 500PCS/DAY

Delivery Time : 1-2days

Packaging Details : Standard packing

Panel Size : 8.0 inch

Panel Type : a-Si TFT-LCD , Panel

Contrast Ratio : 500:1 (Typ.)

Glass Depth : 0.50+0.50 mm

Surface : Antiglare, Hard coating (3H)

Transmissivity : 4.88% (Typ.)(with Polarizer)

Response Time : 12/18 (Typ.)(Tr/Td)

Contact Now

8.0'' character lcd module A080SN03 V3 Of Antiglare 500:1 (Typ.) AUO LCD Panel

Mechanical Features :

Panel : AUO
A080SN03 V3
a-Si TFT-LCD , CELL

Mechanical Features:

Panel Size : 8.0 inch
Dot Resolution : 800×600(RGB) (SVGA)
Pixel Configuration : RGB Horizontal Stripe
Pixel Density : 125 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.2025×0.0675 mm (H×V)
Pixel Pitch : 0.2025×0.2025 mm (H×V)
Weight : 230±10g
Surface : Antiglare, Hard coating (2H)
Active Area : 162×121.5 mm (H×V)
Bezel Area : 163.8×123.3 mm (H×V)
Outline Dimension : 183×141 mm (H×V)
Outline Depth : 4.7±0.3 mm
Landscape or Portrait : Landscape type
Touch Panel : Embeded (Projected Capacitive Touch)

N&S :

> Best price
> Good quality
> Excellent service
> we offer high quality, fast delivery, competitive price for our customers;
> Please send your RFQ(request for quoting) to get latest price;
> We will ship the items within 2 working days after receive the payment;
> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways;
> We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices;
> Warranty of each part.

Signal Interface :

<

Signal Category : TTL
Signal Class : TTL (1 ch, 8-bit) + SPI
Input Voltage for Panel : 3.3/5/-5/14/-14V (Typ.)(VDDIO/VDPA/VDNA/VGH/VGL)
Input Current for Panel : 6.45/5.68/5.68/3.96/4.04mA (Typ.)(IDDIO/IDPA/IDNA/IGH/IGL)
Panel Power Consumption : 189mW (Typ.)
Voltage for Display Signals : 0≤VIL≤0.3VDDIO; 0.7VDDIO≤VIH≤VDDIO
Interface Type : FPC

Company Strength:

  1. ISO9001 certificated, Factory Direct Supplied.
  2. Competitive Price and Short Lead-time.
  3. Professional Team with Rich Experiences in Design / Mfg / Quality Control
  4. Small MOQ Support & Fast Response to Customers.
  5. Long Porduct Life Time.

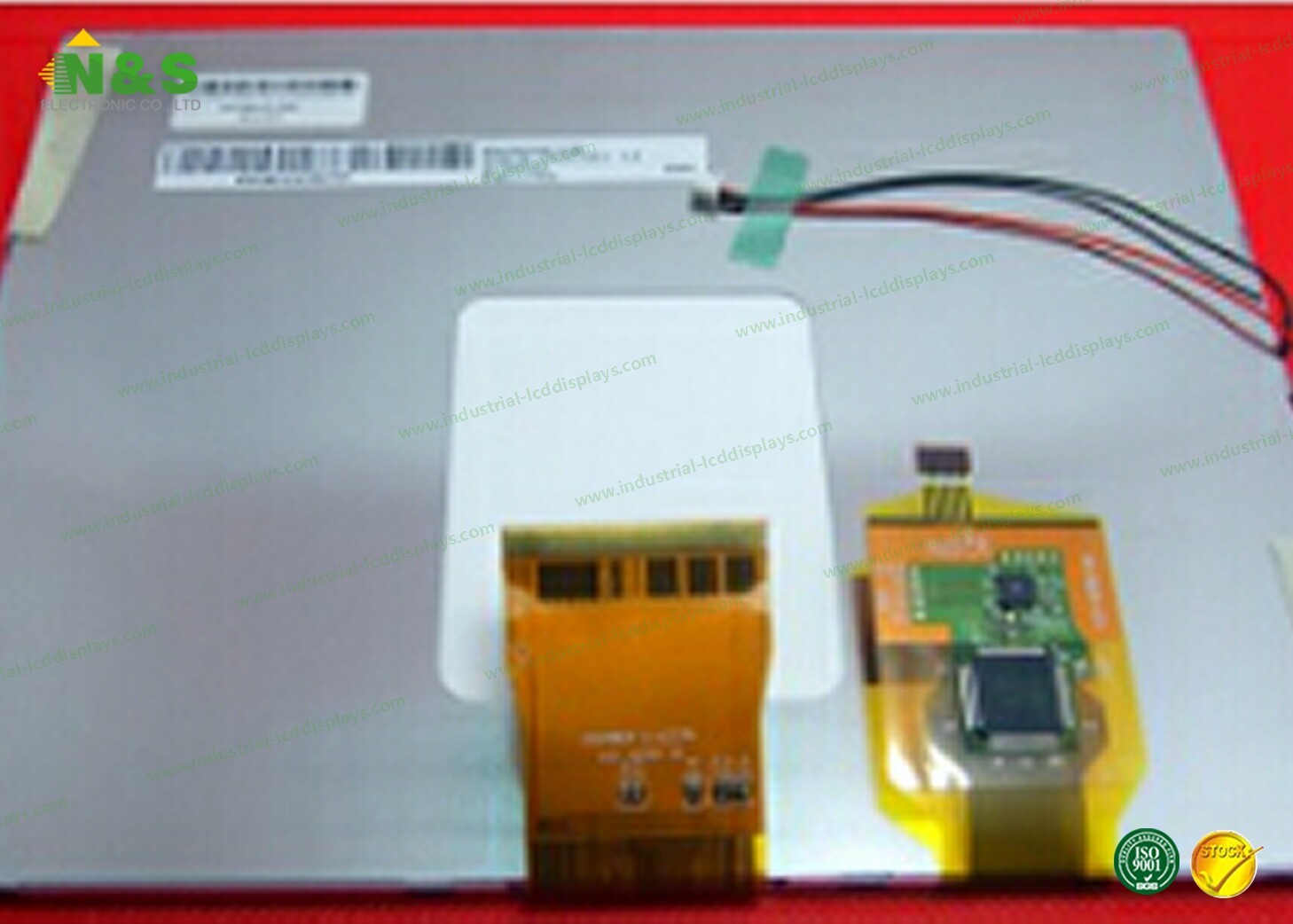

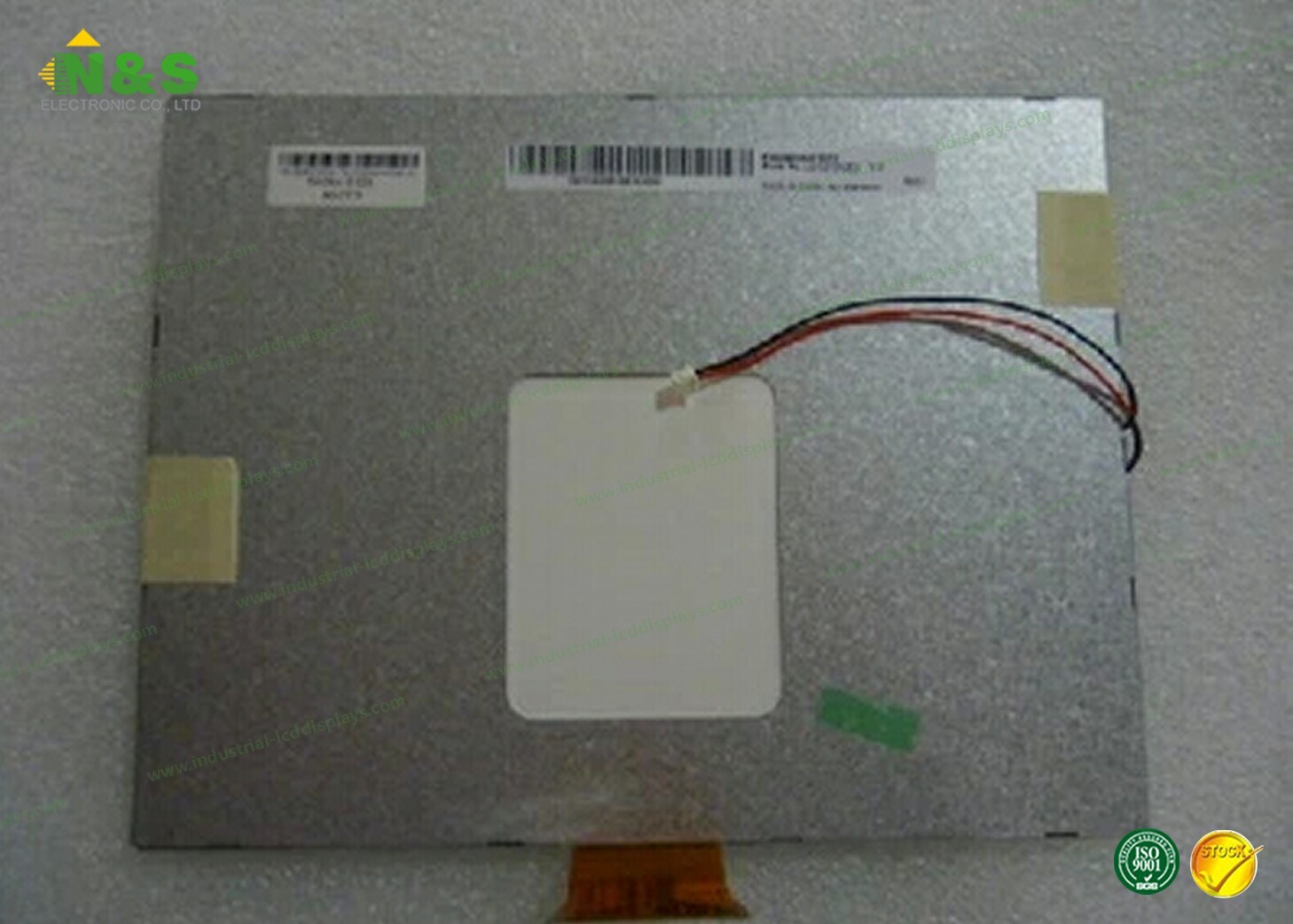

Picture for AUO A080SN03 V3:



Wide Temperature 8.0 Inch Color Lcd Module , Embeded AUO Touch Panel A080SN03 V3 For CarWide Temperature 8.0 Inch Color Lcd Module , Embeded AUO Touch Panel A080SN03 V3 For Car
